Short Description

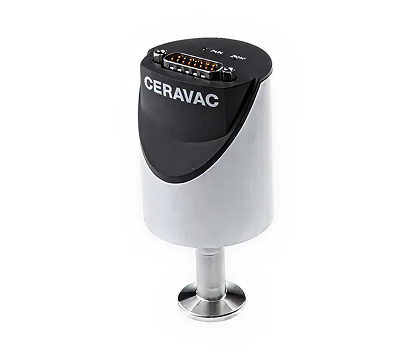

The CERAVAC CTR transmitters offer excellent accuracy and reproducibility. The CTR 100 and CTR 101 allow gas type independent pressure measurements and are able to tolerate bursts of pressure without suffering physical damage or calibration shifts. The robust sensor is suited for the most corrosive processes as the sensor is highly resistant to corrosion from common process chemicals. The sensor of the CTR 101 is internally heated and regulated to 45 °C to offer full scale pressure ranges from 1000 to 0.1 Torr. The CERAVAC CTR line is drop in replaceable for the CERAVAC CTR-N line with negligible impact.
Features and Benefits
- Leading levels of accuracy (0.2%) achieved via the ceramic capacitive sensor.
- Excellent temperature compensation regardless of ambient conditions.
- Fast and accurate response times to pressure changes.
- Long-term stability: no calibration shifts after bursts of pressure.
- Measurement/display range: from 1000 Torr to 10-5, depending on the model
